Ultra-Low Frequency Sine Wave Signal Generator with 7.83Hz Earth Resonance Preset & 0.01-100,000Hz Range

Create Stable Low-Frequency Signals From 0.01Hz Through 100,000Hz With Crystal-Locked Precision

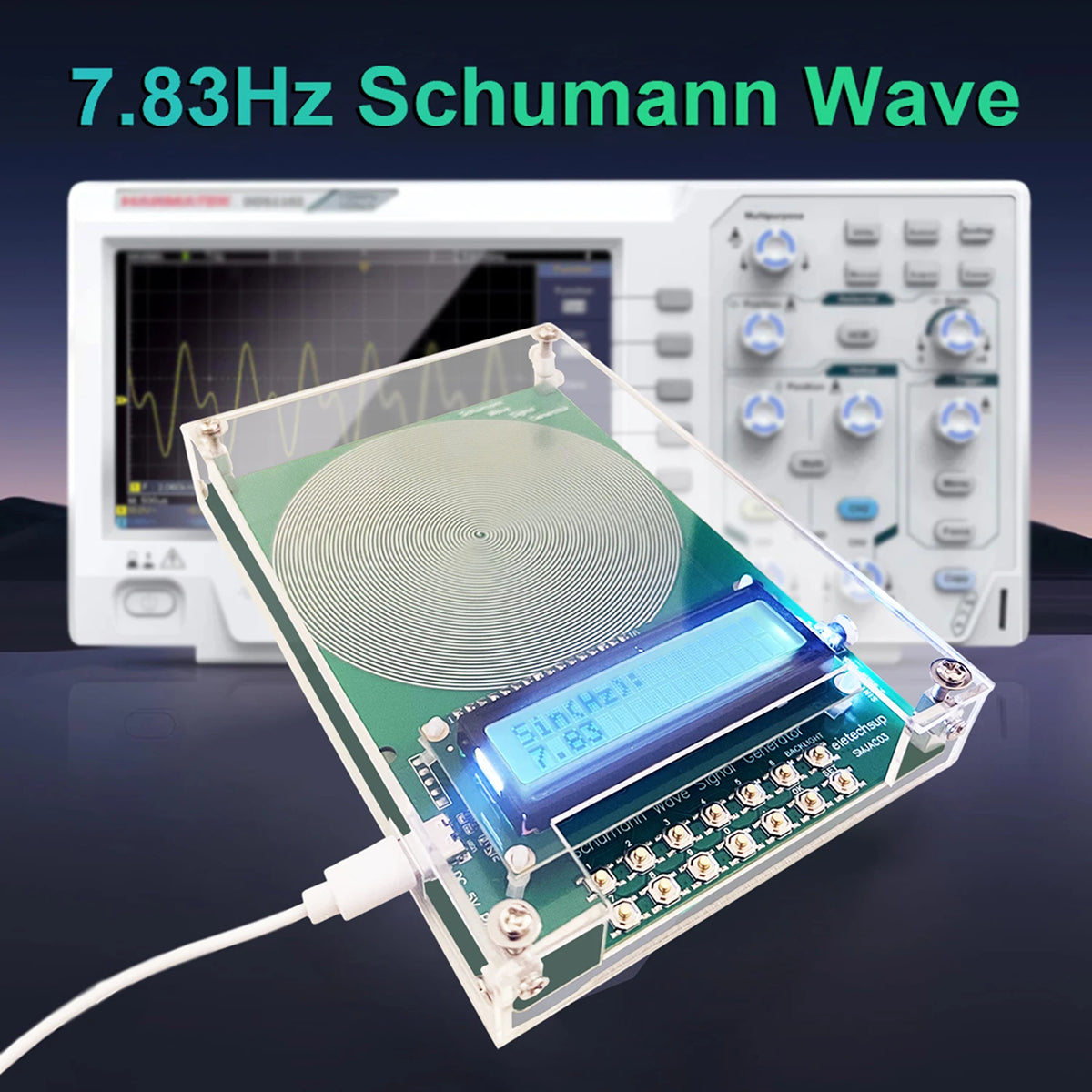

Whether you're exploring electromagnetic resonance phenomena, conducting audio experiments, or researching biofeedback frequencies, you need a signal source that maintains accuracy across ultra-low frequencies without drift or distortion. This tabletop frequency generator uses a temperature-compensated crystal timebase coupled with a dedicated digital-to-analog converter to produce mathematically pure sine waves at any frequency you dial in — from infrasonic 0.01Hz crawls all the way through the audible spectrum to 100kHz. The backlit numeric display confirms your exact setting, while a full keypad lets you type in precise values digit-by-digit. Out of the box it defaults to the Earth's natural 7.83Hz electromagnetic standing wave, so enthusiasts of that frequency can power on and go. A 3.5mm line output feeds amplifiers and powered speakers for acoustic playback, while a dedicated scope probe port lets engineers verify waveform purity on an oscilloscope. Powered by any standard USB-C phone charger, the entire circuit draws under 15 milliamps, making it practical for hours of continuous operation on a laptop port or battery bank.

Why You Need This

• Crystal-Referenced Stability: A low-drift quartz oscillator core keeps your selected frequency locked without wandering, even during multi-hour sessions.
• Five-Decade Sweep Range: Dial in any frequency from 0.01Hz subsonic pulses to 100kHz ultrasonic tones with the same clean sine output throughout.

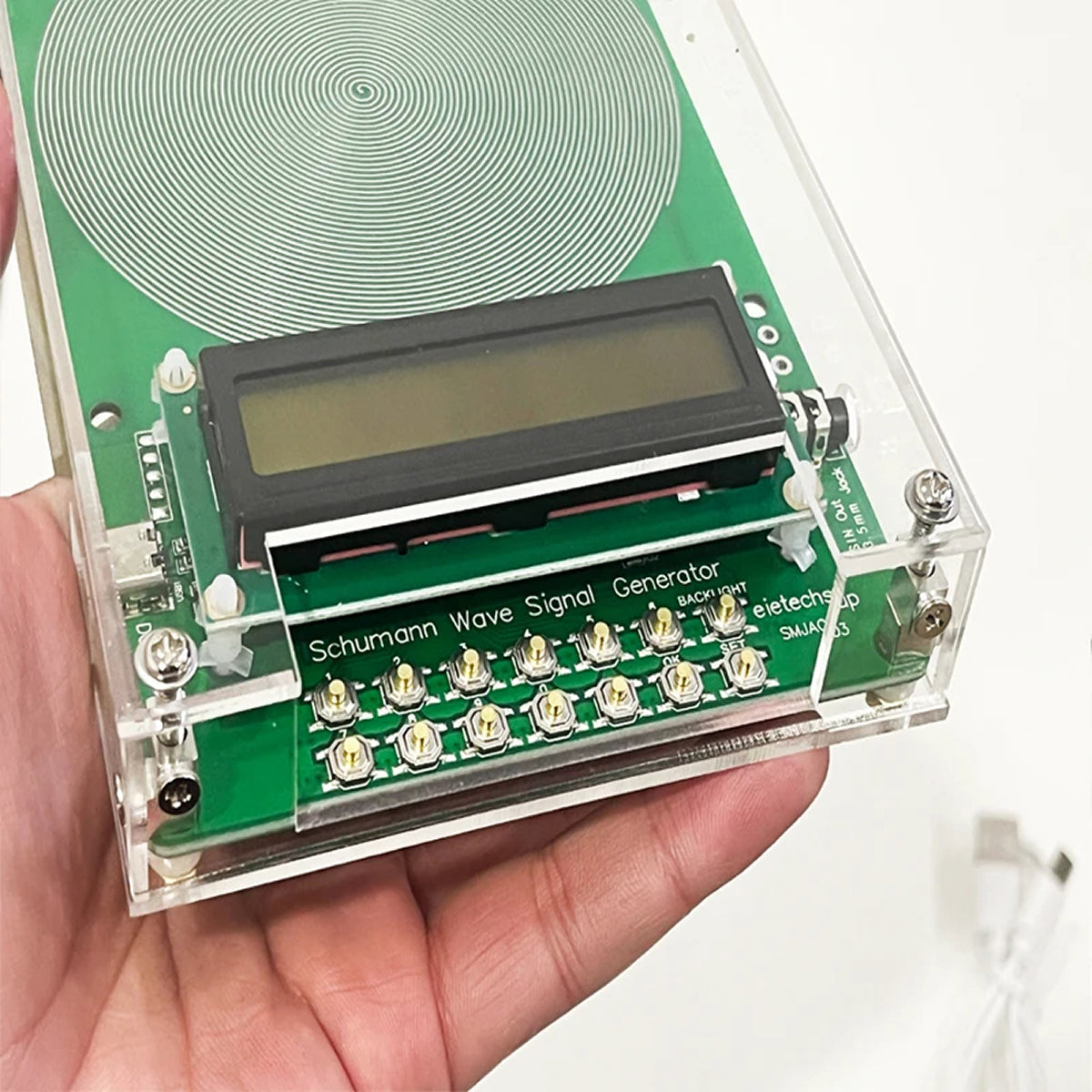

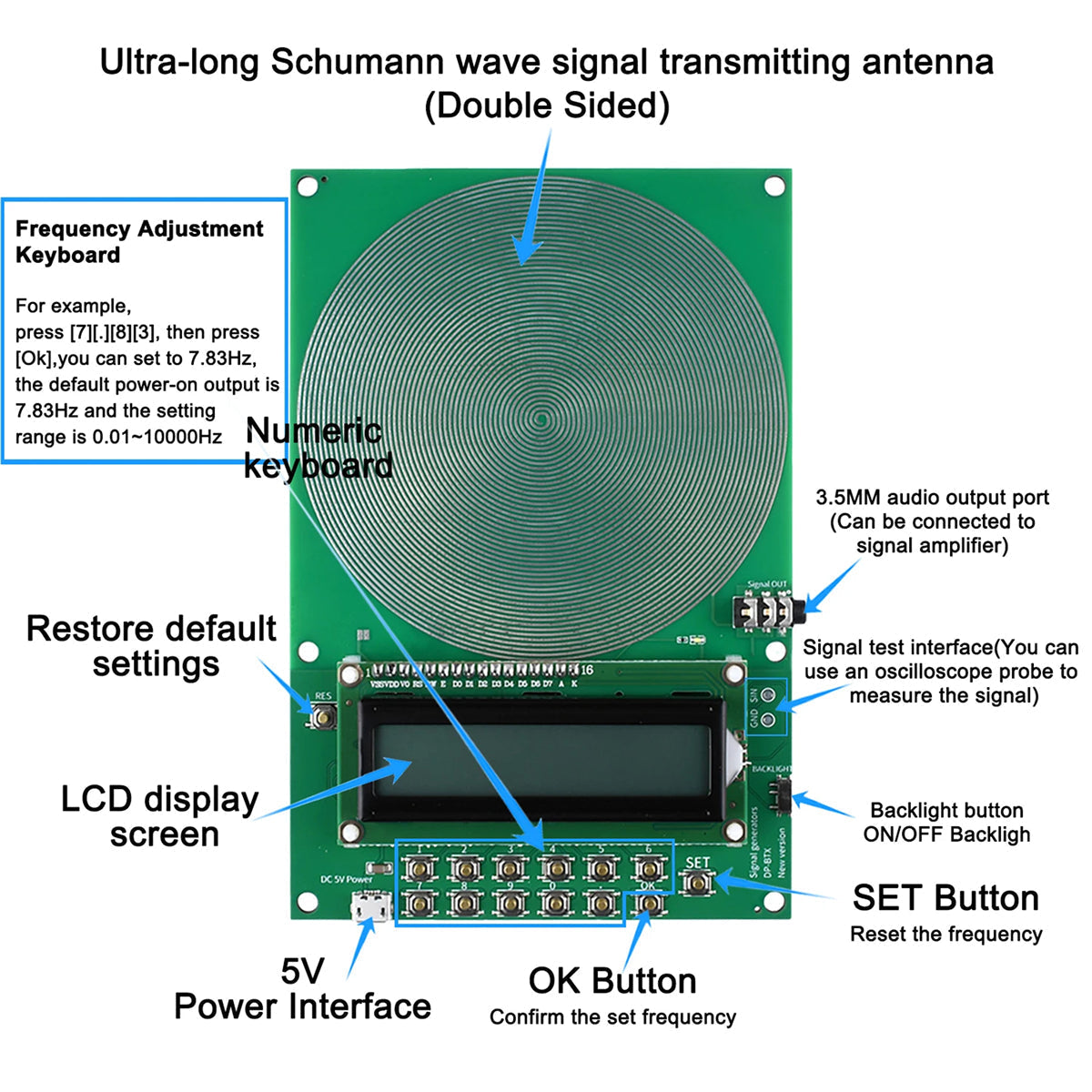

• Direct Keypad Entry: Type the exact frequency you want using numbered buttons, confirm with OK, and watch the LCD update in real time — no fiddly knobs or menu diving.
• Line-Level Audio Output: A standard 3.5mm jack connects straight to powered monitors, guitar amps, or studio interfaces so you can hear and record the waveform.
• Scope Test Port: Engineers can clip an oscilloscope probe directly to the test header to measure amplitude, verify harmonic content, and confirm frequency accuracy on screen.
• One-Button Earth Frequency Recall: Press the restore key at any time to instantly return to the 7.83Hz default, perfect for quick A/B comparisons or resetting after experiments.

Precision Tool For Sound, Science & Resonance Research

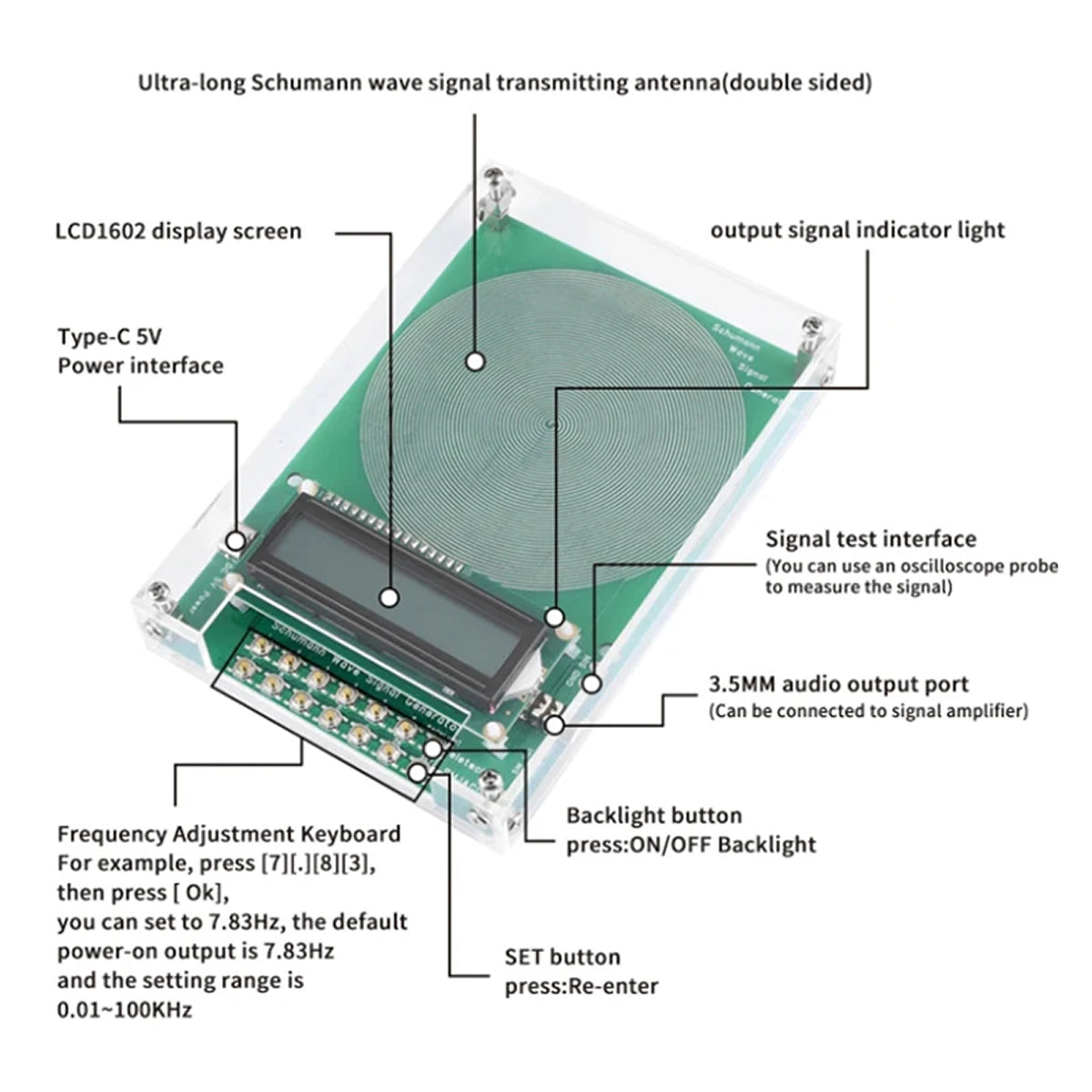

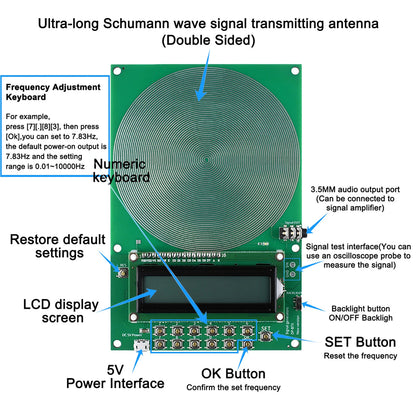

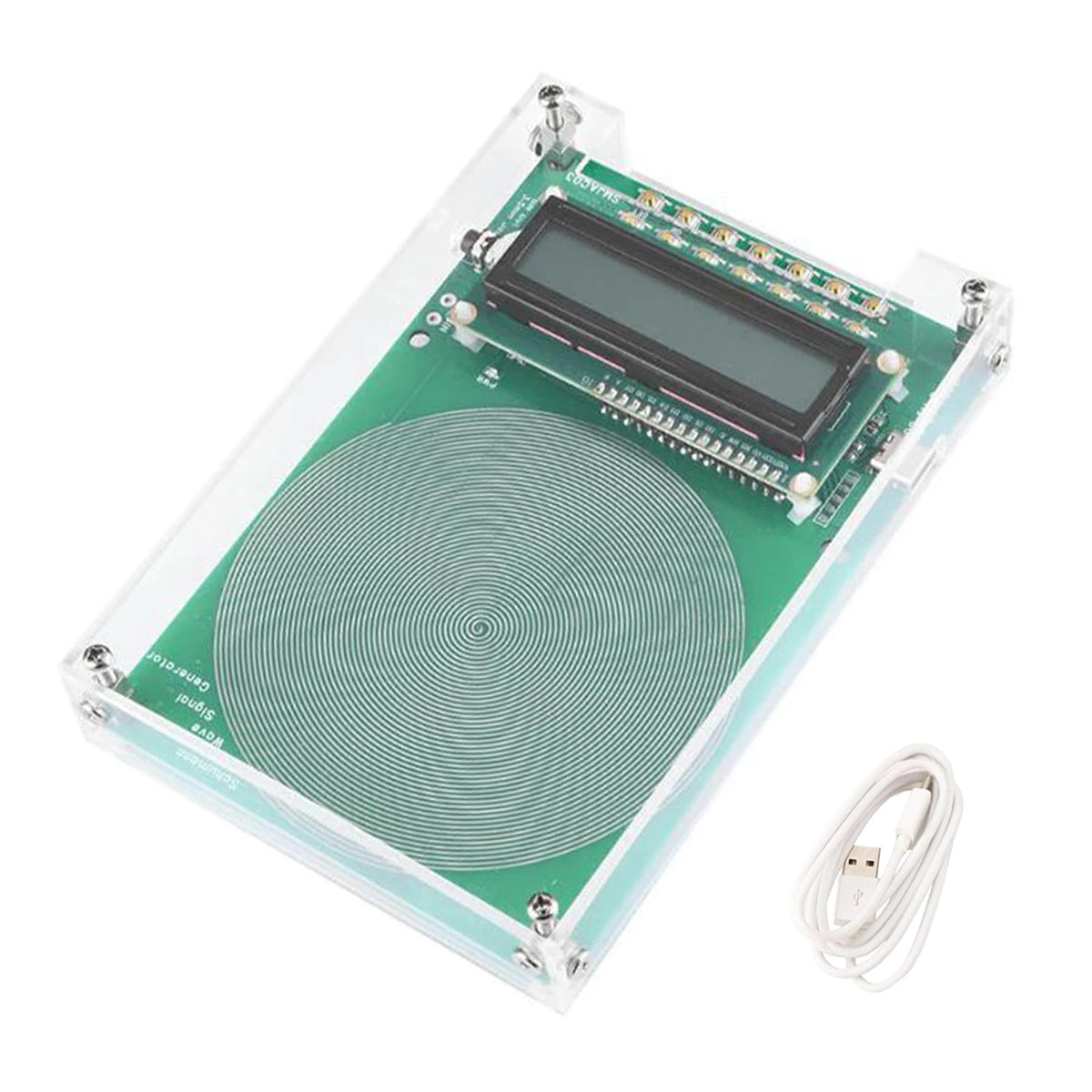

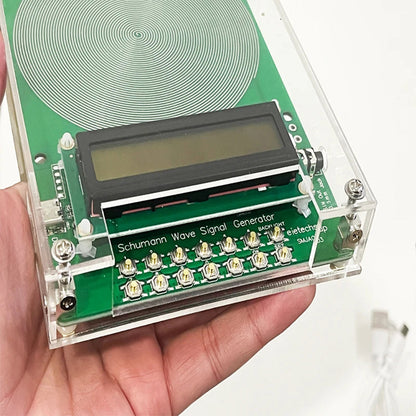

From synthesizer calibration and speaker phase testing to meditation soundscapes and electromagnetic field studies, stable sine-wave generation opens the door to dozens of technical and creative projects. The transparent acrylic enclosure protects the PCB while keeping the spiral transmission antenna visible — the double-sided coil layout radiates low-frequency electromagnetic fields into the surrounding space for near-field experiments. An LED indicator glows whenever the output is active, and the display backlight toggles on or off to suit dim or bright environments. Compact enough to sit on a workbench beside your oscilloscope or on a nightstand during evening sessions, this generator fits wherever you need a rock-solid reference tone. The USB-C power input accepts any 5-volt supply, and the minuscule current draw means you can leave it running all day without worry. Every frequency adjustment is confirmed on the two-line LCD, and a SET button lets you clear and re-enter if you mistype a digit before hitting OK. Whether you're chasing the Schumann fundamental or sweeping through audio test tones, this compact lab instrument delivers repeatable, drift-free performance year after year — and it ships with free standard US shipping and a 30-day satisfaction guarantee so you can experiment risk-free.
